Perimeter Acquisition Radar

Model No. RAD81

Allows observation of objects around the entire circumference (360°). Can find cars and passers -by in rain or fog; ideal for the development of autonomous driving vehicles.

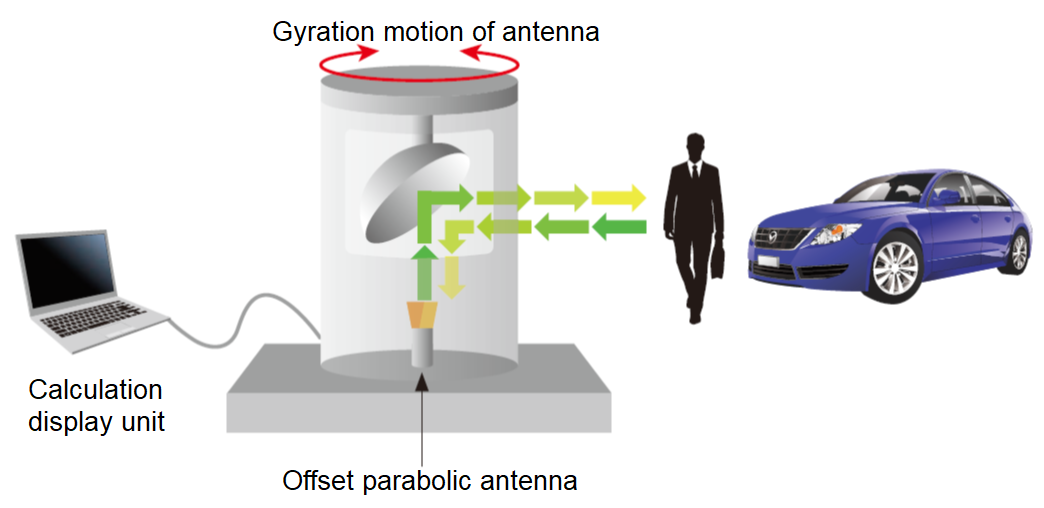

Configuration

Specifications

Frequency  76.5GHz
Transmission output  +10dBm or less
Radar system  FMCW radar
Horizontal detection angle  360°
Horizontal angle step  0.5°
Horizontal angle resolution  3°
Vertical detection angle  3°
Scree refresh time  0.05sec
Sensitivity(RCS of 10dBsm)  100m
Distance step  15cm
Distance resolution  50cm
Display  Real-time image (360°) / Stationary objects removal mode can be selected
Record ・Two-dimensional data (acquired during screen refresh time)
・Two-dimensional data (HDD is required.)
