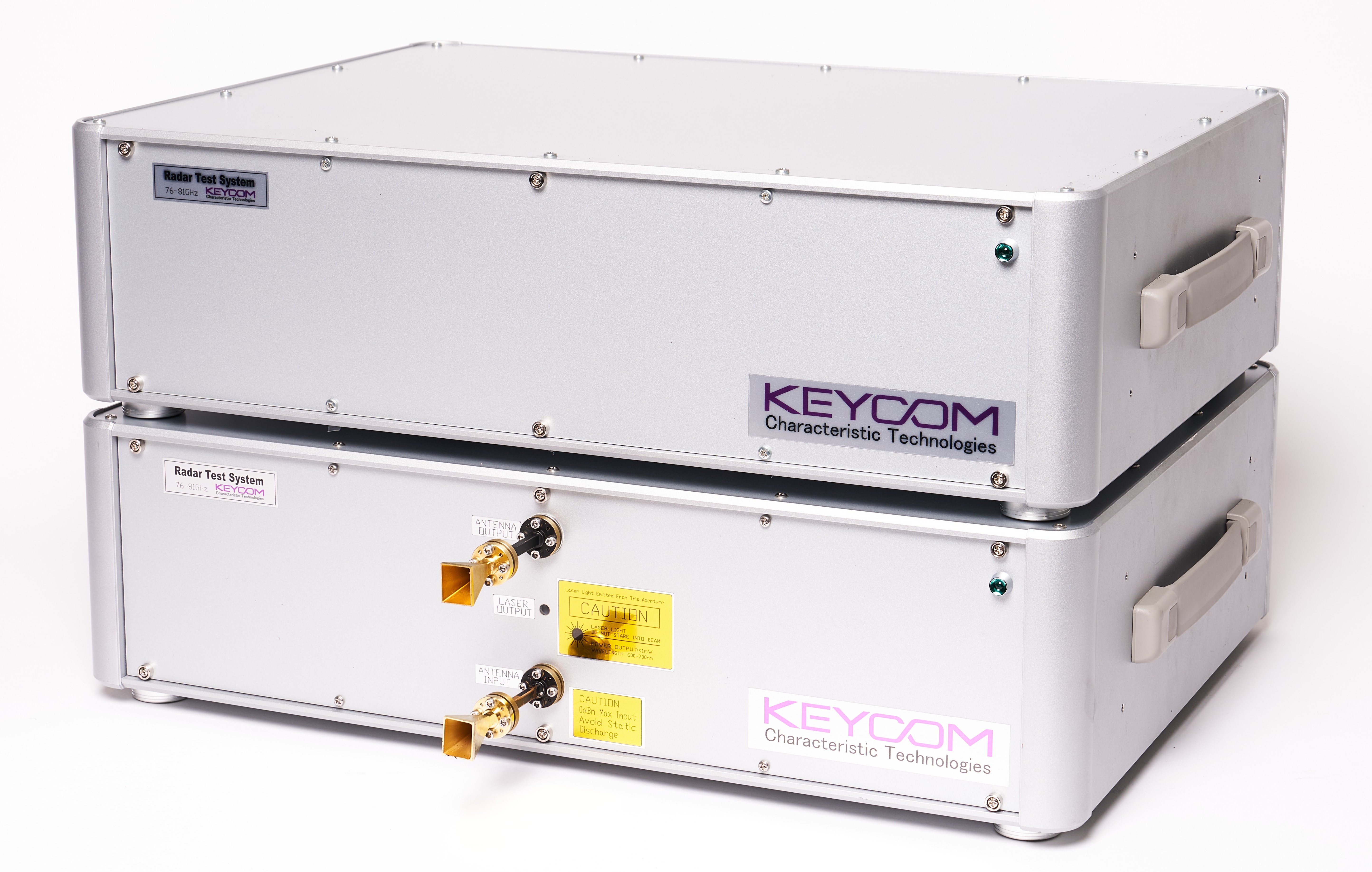

By combining fully digitalized radar wave response control with analog
technology, this highly accurate and highly functional RTS achieves a
minimum distance of 1.8m, distance resolution of 3.33cm (10cm), and RCS
control that responds to distance changes.
By using the RTS in combination with our moving antenna system,
it is possible to simulate a situation where a vehicle ahead changes lanes,
making it possible to test automotive radars more practically.
Specifications
| Model | ME7220DM-77G-EMC | ME7220DM-24G-EMC | ME7220ME-79G(analog)-EMC | ME7220DM-79G-2T-EMC |
| Frequency range (bandwidth) | 76-77GHz (700MHz/1GHz) | 24-25GHz | 76-81GHz | 76-77GHz/77-81GHz switching |
| Distance range (resolution) | 1)300m ~ 30m (15cm) 2)30m ~ 3.5m (25cm) 3)3.5m ~ 1.8m (50cm) |
same as left | 300m ~ 2m (25cm) | 1)300 ~ 16m (3,3cm) 2targets 2)16 ~ 2m (10cm) 1target |
| Speed (speed resolution) |
± 500km/h (0.1km/h) | same as left | same as left | ± 600km/h (0.1km/h) |
| Antenna range | -20dBsm ~ +39dBsm | same as left | same as left | same as left |
| Number of antennas | Tx 1, Rx 1 | same as left | same as left | same as left |
| Moving target function | Yes | Yes | Yes | Yes |
Ordering Information
We have cutting-edge technology from low to high frequencies. We also accept customization according to the conditions of the simulation test you need. Please feel free to contact us.
