Compact Range, Near/Far-Field Conversion RCS Measurement System-02

Model No. RCS02
Feature

RCS02 irradiates a rotating sample with plane wave and receives reflected wave at a desired angle. It then executes near-far field conversion on the received data to acquire RCS.

【Related Contents】
👉Products Line-up of RCS measurement system
👉For developing Radar(Microwave, Millimeter wave) in general : Please check here
👉For developing Automotive Radar : Please check here

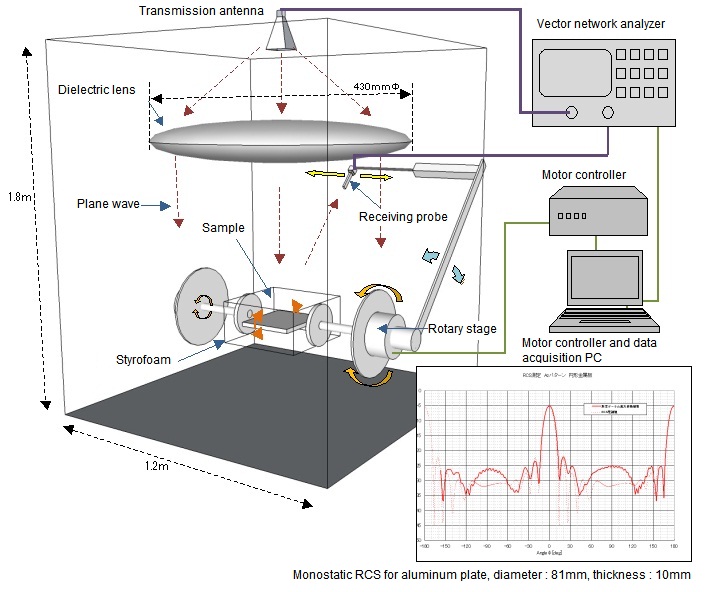

Configuration

Functions

Specifications

Item Specification
Dielectric lens φ430mm
Sample 200mm max.
Frequency

1.7GHz ~ 26.5GHz

Rotary stage 360°, 0.1° pitch
Receiving probe Azimuthal 500mm manual

Model no.

Name Model no. Remarks
Cylindrical scanner / Controller CYLSCAN-004, 1 set
Rotation: 360°, 0.1° pitch
Azimuthal: 500m,
Incline direction: manual
Antenna
(w/ Coaxial waveguide converter, horn antenna, probe antenna)

AK430(1.7~2.6CHz)
AK284(2.6~3.95CHz)
AK187(3.95~5.85CHz)
AK137(5.85~8.2CHz)
AK90(8.2~12.4CHz)
AK62(12.4~18CHz)
AK42(18~26.5CHz), 1set


Measurement coaxial cable CM06B-APC2.9(m)APC2.9(m)-3m, 2 pieces
GPIB interface GP-01, 1set
Near/Far field conversion software DMP-02120517-07, 1set XY cordinates, polar cordinates indicator

Required : Vector network analyzer, Windows PC (memory 1GB and above, CPU Pentium4 3.0GHz or above, OS Mmicrosoft Windows XP SP3 or later)
