Millimeter Wave Cover Beam Tilt Distribution Measurement System

Model No. RCS10(EES-20)
Feature
A Long-range radar sensor is normally installed behind car emblem.
For efficient and effective transmission of radar wave, beam tilting and transmission loss should be minimised when radar passing through the emblem.
This system can be used to check the condition of beam tilt with 2D image by radar imaging.

Overview

When placing an emblem radar(anti-collision radar behind car emblem), the transmission attenuation and tilt angle (bending angle) of the emblem must be reduced.This system visualizes them with imaging radar.

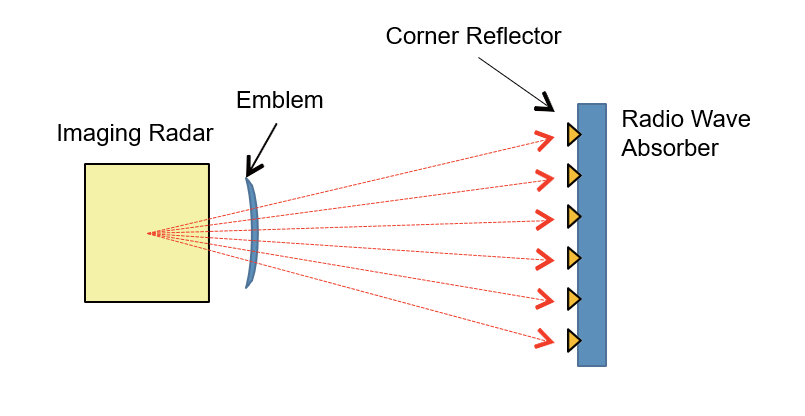

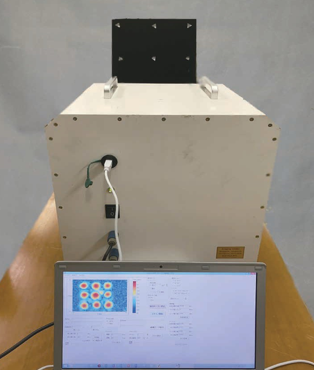

Configuration


Measurement Example(2D Image)

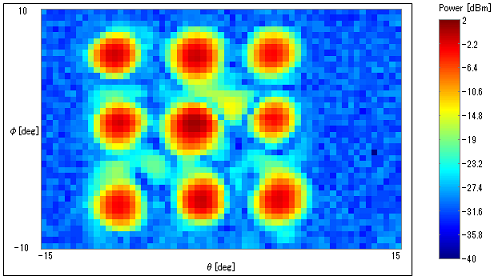

                                       No Emblem

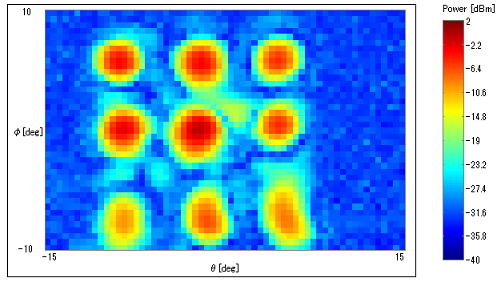

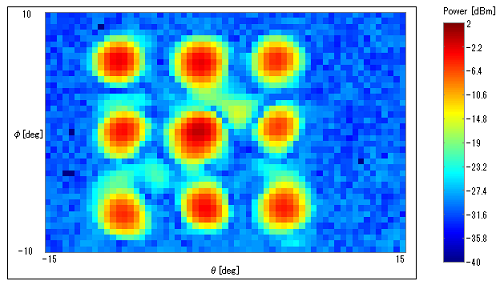

                                     ①Emblem of good quality                                   ②Emblem of inferior quality

Specification

Measurement item Phase transmission attenuation Displays the extent of diversion from predetermind criterion by color
Measurement Frequency 76.5GHz,79GHz Central frequency
Measurement range  Horizontal(X axis)direction:±15°
Vertical(Z axis)direction: ±10°
Measurement pitch:0.5°
Power Supply AC100V/16A(max)
