Automorive Rader Test System for Inspection and Maintenance
Model No. RTSS 01
Feature
After you drive a car for long time, it is possible that automotive radars cannot perform at its best due to misalignment etc, which requires periodical inspection and maintenance.
This compact test system allows you to check quickly for radar misalignment etc., without disassembling car body.
It is ideal for maintenance shops and inspection service providers.

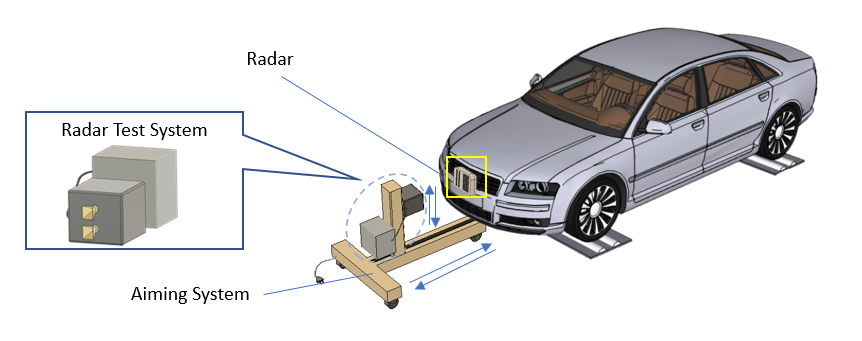

Product Image
Product features and utilization scene
- The system is for testing functions of vehicles driving in the streets, such as detecting
direction of radar beam, collision avoidance, and tracking, and can also measure height
of radar.
- You can adjust the location of the system flexibly, enabling for you to test radar equipped
in cars of various sizes.
- It is compact in size, easy to carry, set up, and remove. Therefore, you can easily introduce
it into auto-repair shops.
|
Specifications
| Items |
Details |
| Frequency Range（Bandwidth） |
76-81GHz(1GHz) |
| Moving Target |
Distance：1.8m～100m, Speed±0～300km/h |
| Antenna |
1 （Transmitter）, 1 （Receiver） |
Options
| Items |
Details |
| Aiming System |
Measuring height of radar
Measuring radar beam±3°Accuracy±0.15°
|
| Power Detector |
0-15 dBm |
Ordering Information
Please send us any questions or requests by email or telephone.
Our sales representative will answer to your questions and will propose an appropriate system for you.
