Shield Effect Measurement System for Cable

Model No. SEM03

SEM03 is in compliance with MIL-C-85485A, effective in measuring / evaluating coaxial cable / multi-core cable.

Correction by the value of characteristic impedance can also be performed.

【Related Products】
👉 Products Line-up of Shield Effect Measurement System

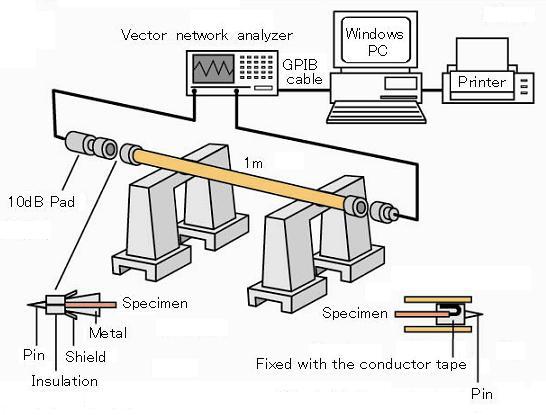

Configurations

Measurment Kit for Connector CC-50

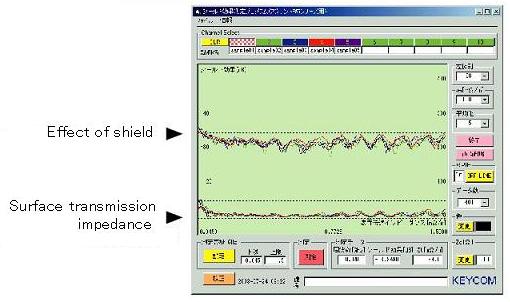

Data sample

Parts No.

Parts No.
Product name
Specifications

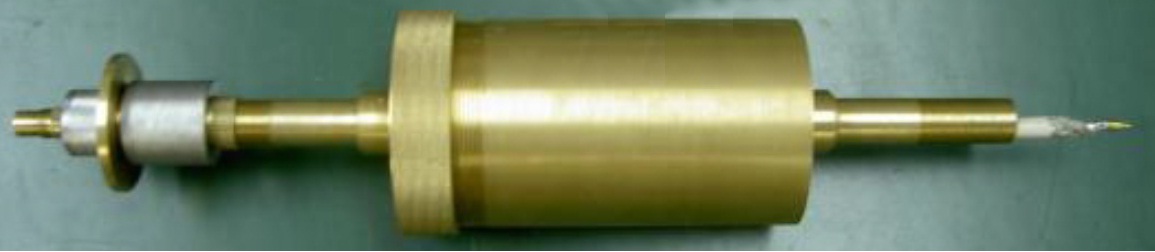

SC1.5D Shield kit for measurement
(with GPC7 connecter)		 1.5D coaxial cable (300KHz~6GHz)
(300KHz~1GHz with cables other than 1.5D coaxial cable)
SC10 Shield kit for measurement For cables less than 10mm φ (300KHz~1GHz)
(With a spacer for maintenance of eccentricity within 70%)
CC-50   Measurement kit for connector
CM06D-AA-1500 (2 pieces) Measurement cable
ST-1A Fixing stand
DMP-81 Calculation and display programs
GP-01 GPIB cable
A vector network analyzer or scalar network analyzer and a Windows PC required.
