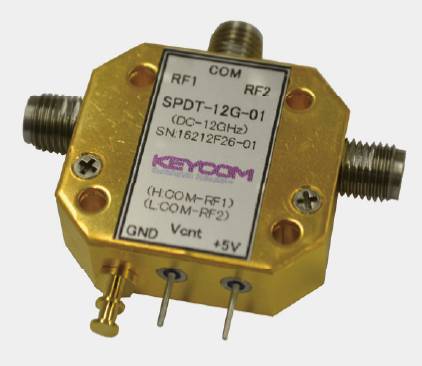

DC-12GHz SPDT Switch

Model No. SWI03

DC-12GHz switch module operating on +5V single power supply.
Control voltage operates in the range of +3~+5V.

【Part No.】SPDT-12GHz-02

【Related Contents】
👉 Products Line-up of Milliler wave & Microwave Components / Devices
👉 Products Line-up of Switch

Specifications

No.	Item	Details	Note
1	Frequency	DC-12GHz
2	Function	SPDT
3	Insertion Loss	-2.4dB Typ.@6GHz	-3.5dB @12GHz
4	Isolation	-50dB Typ. @ 6GHz
5	RF Input Power	P1dB=+27dBm, MAX +30dBm
6	Vcont / Switching	+3V-+5V（COM-RF1：ON COM-RF2：OFF） / 0V（COM-RF1：OFF COM-RF2：ON）	The OFF RF terminal is terminated with internal 50Ω.
7	Power Supply	+5V 20mA or less
8	Switching Speed	10ns Typ.for both Tr and Tf
9	RF Conenctor	SMA(f) for COM, RF1 and RF2
10	Power Control Connector	SM06B-SRSS-TB
11	Size	25.0(L) × 28.0(W) × 9.0mm(Thickness)...without connector 37.5(L) × 40.7(W) × 9.0mm(Thickness)...with connector
11	Mounting Hole Size	φ2.8mm × 4
12	Weight	44 g
