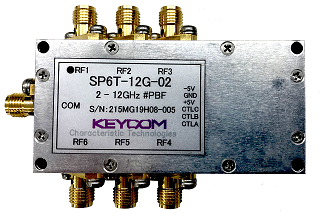

2~12GHz SP6T Switch

Model No. SWI06

2 ~ 12 GHz SP6T switch module operating on +5V single power supply.
Control voltage operates at +5V / 0V.
Insertion loss is -3.0dB Max @ 10GHz.

SP8T model, which shows higher performance and can be substituted for this product, is now available!

【Part No.】SP6T-12GHz-02

【Related Contents】
👉 Products Line-up of Milliler wave & Microwave Components / Devices
👉 Products Line-up of Switch

Specifications

No.	Items	Details				Note
1	Frequency	2～12GHz
2	Function	SP6T
3	Insertion Loss	-4.5dB MAX @ 15GHz				-3.0dB @10GHz
4	Isolation	-30dB MIN @ 12GHz				-35dB @10GHz
5	RF Input Power	P1dB=+23dBm MAX +26dBm
6	Vcont	Low: 0 ~ +2.0Vdc 5μA Typical High: +3.5 ~ +5Vdc 25μA Typical
7	Switching	Control input			Signal path state
		A	B	C	COM to:
		High	Low	Low	RF1
		Low	High	Low	RF2
		High	High	Low	RF3
		Low	Low	High	RF4
		High	Low	High	RF5
		Low	High	High	RF6
8	Power Supply	+5V 50mA/ -5V 30mA
9	Switching Speed	80ns tRIZE, tFALL(10/90%RF)
10	RF Conenctor	SMA(f)
11	Power Control Connector	SM06B-SRSS-TB
12	Size	31(L) × 63(W) × 14 mm(Thickness)...without connector 51(L) × 73(W) × 14 mm(Thickness)...with connector
12	Mounting Hole Size	φ2.8mm、27(L) × 59mm(W)
13	Weight	80 g
