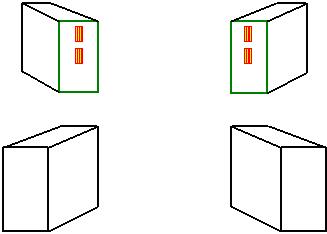

This is 2Gbps,high speed, Beam Scanning 60GHz communication network System.Configurations
 |
Specifications
| Model No. | CSBF60G-01 | Remarks |
| Frequency | A1:57.24-59.4GHz A2:59.4-61.56GHz A3:61.56-63.72GHz A4:63.72-65.88GHz |
IEEE802.15.3c |
| Transmission Power | 10mW | |
| IF Frequency | 6GHz | SMA(f) |
| Bit rate | 2Gbps | |
| Numbers of Channel | 4 CH | |
| Modulation | OFDM QPSK others | |
| Width of One Channel | 1728MHz | |
| Direction for communication | Tx-ANT Total ∠160(Horizontal) Total ∠90(Vartical) Rx-ANT Total ∠160(Horizontal) Total ∠90(Vartical) |
-20dB down -20dB down -20dB down -20dB down |
| Transmission ANT | Ridge horn ANT 4 pcs | |
| Receiving ANT | Ridge horn ANT 4 pcs | |
| Beam Scanning | Phased arrey 4 elements (Horizontal) | |
| External Control | Main Beam ∠5 step, ± ∠45 control max | |
| Power Supply | AC100-240V 1A Max | |
| Dimension | W100 × H150 × D150 |
