Phased-array antenna

Model No. ANT40

Feature

A phased array antenna consists of multiple antennas.
It has strong directivity and can transmit over long distances.
It is also possible to change the direction of electromagnetic waves electrically.

We will design and produce every kind of phased-array antenna.
Please feel free to contact us.
The model of antenna in the image below is used for RAD73 (94GHz Phased-array type receiver for a weather rader).

【Related Contents】
👉 Products Line up of KEYCOM's Antenna Series

Specifications

Items	Details
Frequency	94GHz
Beam scan angle	± 4.5°
Gain	39-41dBi
Beam width, horizontal plane	0.549°
Beam width, vertical plane	2.06°
Sidelobe level, horizontal plane	–10.74dBi
Sidelobe level, vertical plane	–9.38dBi

Sample data

Directivity ・Gain

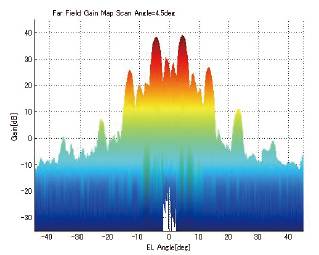

Vertical plane

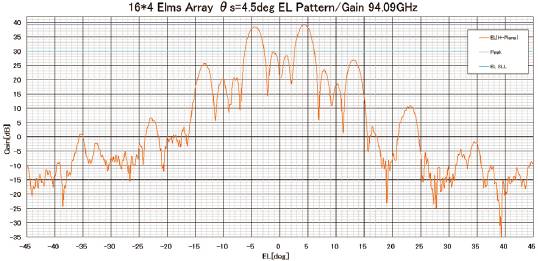

Far field antenna pattern

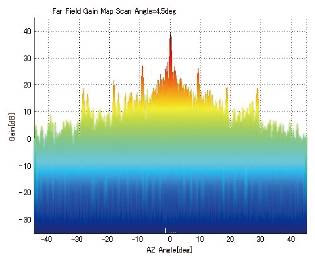

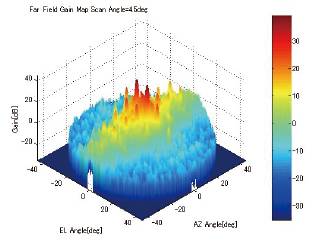

3D pattern	Vertical plane pattern	Horizontal plane pattern

Order information

Please contact us via phone or e-mail and share your system descriptions, requests, and intended use. Our experienced representatives will propose solutions that will meet your requests.
