Dielectric waveguide lines for millimeterwave
(Received Dupont Plunkett Awards)

Model No. MMT01

The transmission body part is made of dielectric, which enables flexibility and very low insertion loss for millimeterwave.
This is best suitable for heat cut-off and high voltage cut-off of between cryogenic (super low temperature) and room temperatures.

👉 Click here to check Products Line-up

Model No.

DW110A - 03000 - 10 - 387
Dielectric wave guide line type 　 Length mm 　 Waveguide type 　 Flange type

Function

Waveguide Frequency range
GHz		 Flange part
Waveguide(EIA standard) Flange(MIL standard)
DW140A 90.0 ~ 140.0 WR- 8 UG- 387 /U (circle)
DW110A 75.0 110.0 10 387
DW075A 50.0 75.0 15 385
DW050A 33.0 50.0 20 383

Composition

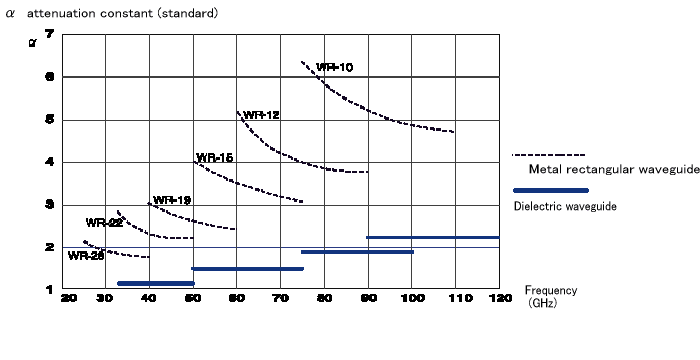

Comparison of attenuation loss between dielectric waveguide and EIA waveguide(at length of 1m)

Insertion loss of dielectric waveguide at length of Lm :
α×L+0.8[dB]
0.8 : Conversion loss to waveguide(2 pcs)

*Unit of insertion loss dB/m
