Model No. RAT04
Model No.
PRE-01
Characteristics
The supersonic wave DeLay line is used for the DeLay line.
1) Even the target of 100m can be measured because of the low super-loss. The standard is 10m.
2) The propagation delay line is constant even if different in frequency because a transmission mode is a single mode unlike the metal wave guide.
3) The change of the distance between 0°~40° is ±1m or less every 100m unlike the supersonic wave DeLay line etc.
4) Because electricity is not used, the influence of the voltage change is not received. It doesn't break down easily.
Configurations
Model No.
Radar fixation stand
| Model No. |
The horizontal |
The top and bottom |
|
| RAF-01 |
±5°, 0.01°pitch |
±5°, 0.01°pitch |
With a controller,
It is ready to consult about the size of the radar fixation part. |
Horn antenna
| Model No. |
|
|
| RH-15R |
50~75GHz |
23dB |
| RH-12R |
60~90GHz |
23dB |
| RH-10R |
75~110GHz |
23dB |
Attention ) The antenna with low reflectivity such as the lens horn antennas can be prepared by the option.

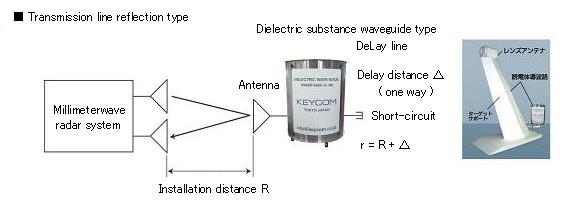

Dielectric substance waveguide
| DVD |
76 |
B |
- |
10 |
m |
| |
Center frequency (GHz) |
|
|
Distance from radar to target |
|
Radar standard target
| Corner reflector |
| KRTC |
- |
76.5 |
- |
28.8m2 |
| |
|
Center frequency (GHz) |
|
Radar cross section |
Electric wave dark box
| Model No. |
|
| EWAC-5m-01 |

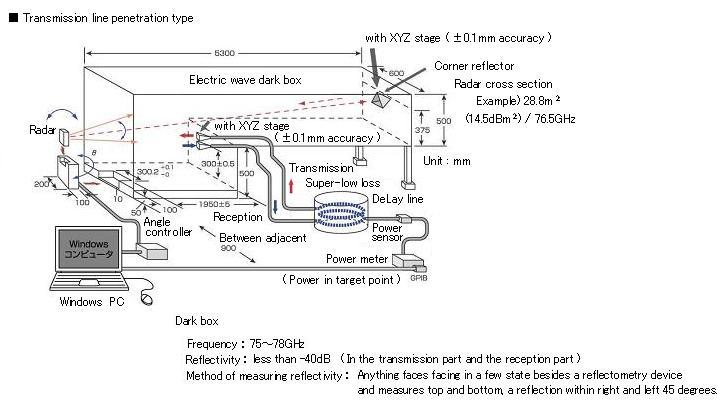

The one of block diagram |
Software
| Model No. |
|
| DMP-45 |
A distance, power, and the top and bottom and a right and left angle are recorded with Windows-csv. |
GPIB cable
It is ready to consult about the power sensor and the power meter.
You will have to prepare the Windows personal computer and the printer.
