Quake-proof type Imaging Radar

Model No. RCS08

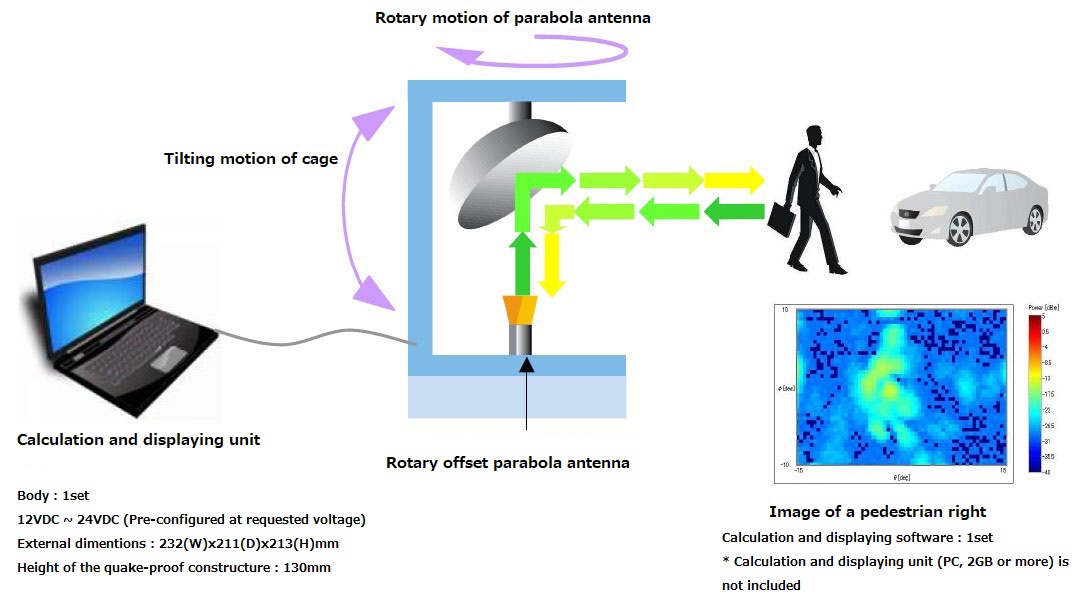

The radar creates images of reflection signals from targeted objects that actual collision avoidance radars are intended to receive nearly real-time.

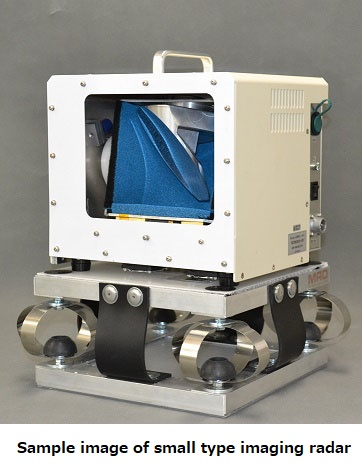

This is earthquake-resistant type, and can be mounted on a mobile device such as a car.

New model(RCS11,FMCW-type) now available, and the quake-proof function can be achieved with Earthquake(Vibration)-resistant option for RCS11.

Features

Capable of monitoring targeted objects with 3D image.
Because of the quake-proof construction, it can be equipped in moving object like a vehicle.
It can store 10 consecutive hours' data by using external SSD.

RCS(Radar criss sectuin) measurement
Radar for automotive which can create images of reflection signals from targeted objects that actual collision avoidance radars are intended to receive nearly real-time
Intruder monitoring, moving target monitoring(whole surrounding monitoring option available)
Level gauge
Fluid flow analysis

Frequency	76.5GHz
Transmission output	Below +10dBm
Radar system	Pulse radar
Azimuthal detecting angle	33°
Azimuthal angular resolution	0.5°
Sensitivity (at RCS10dBsm)	50m
Distance resolution	15cm
Depth resolution	1m
Display	• Image • RCS of object or region of interest (ROI) • Depth of specified region
Data storage	• 2D data (acquired at image update rate) • 3D data (HDDr reqired. Requies 10times the 2D image acquisition time)
Elevational detecting angle 20° Elevational angle step 2°　Image update rate 0.9sec Elevationa angle step 0.5° Image update rate 4sec
Elevational detecting angle 10° Elevational angle step 1°　Image update rate 0.8sec Elevationa angle step 0.5° Image update rate 2sec
Elevational detecting angle 5° Elevational angle step 0.5°　Image update rate 0.7sec
Elevational detecting angle 0° Image update rate 0.1sec

Please consult with your KEYCOM representative for specifications of your request.
