Imaging Radar
(High-sensitivity type)

Model No. RCS11
Features

【Related Product】
👉 Systhetic Aperture Imaging Radar
👉For developing Radar(Microwave, Millimeter wave) in general : Please check here
👉For developing Automotive Radar : Please check here

Configuration

Items Details
Main unit 1set
Voltage 12VDC(± 10%)、5A or less(with AC adapter)
External dimensions(H x W x D) 215 x 232 x 211mm(excluding protrusions)
Weight 5kg
Software for calcuration and display 1 set

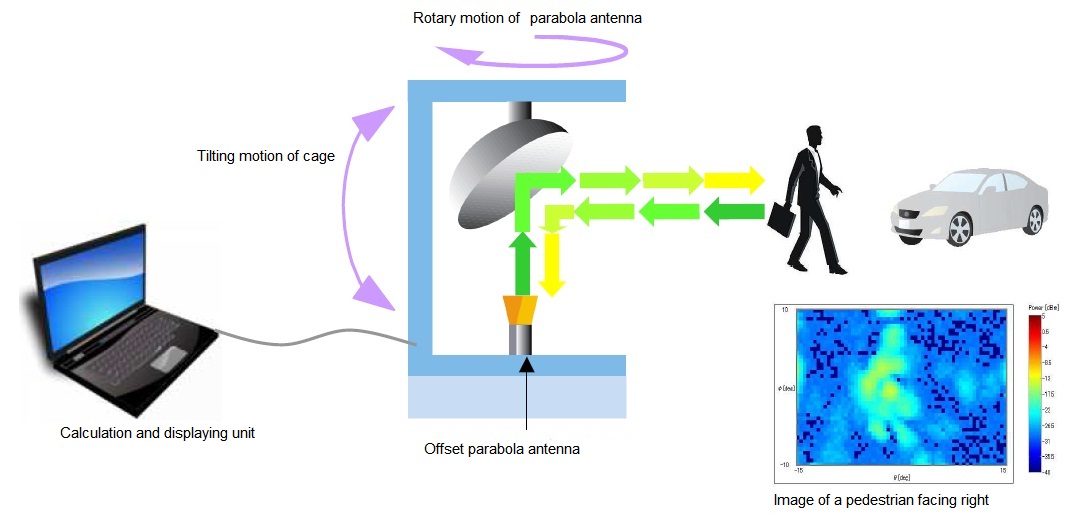

Main functions

Specifications


Items Details
Frequency 76.5GHz
Transmission output +10dBm or less
External dimensions(H x W x D) 215 x 232 x 211mm(excluding protrusions)
Radar system FMCW Radar
Horizontal detection angle 33°
Horizontal angle step 0.5°
Angular resolution
Vertical detection angle 20° 10°
Vertical detection angle 0.5° 0.5° 0.5°
-
Screen refresh interval 0.9 sec 4 sec 0.8 sec 2 sec 0.7 sec 0.1 sec
Sensitivity(RCS10dBsm) 150m
Distance accuracy 15cm
Distance resolusion 1m
Display ・Image
・RCS of objects or enclosed area
Record ・2D data
・3D data

Options

Outline

In addition to the high-speed and earthquake-resistant options, we offer a built-in camera option that overlays radar imaging images and camera images.

Option Details
RCS11 OP-K High-speed option for RCS11
RCS11 OP-T Earthquake(Vibration)-resistant option for RCS11
RCS11 OP-C Built-in camera option for RCS11 (with software to superimpose radar image and camera image)
Others Level, Tripod mount , Tripod

Built-in Camera(RCS11 OP-C)

In addition to the high-speed and earthquake-resistant options, we offer a built-in camera option that overlays radar imaging images and camera images.

Items Details
Resolution 1280 x 720(default value)
OS Windows 10
Interface USB2.0

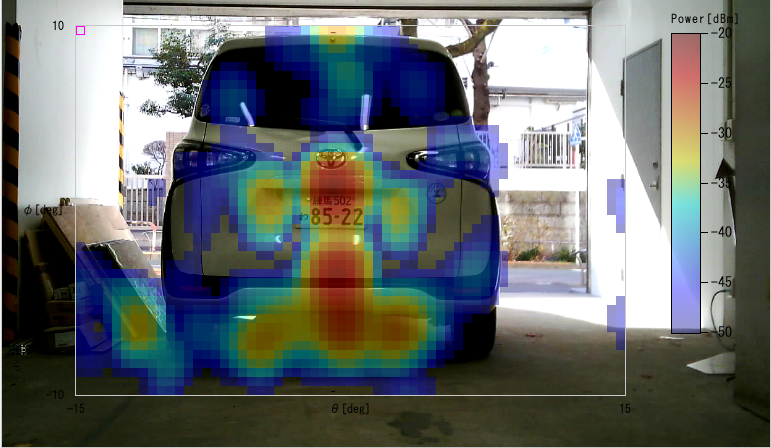

Examples of photography using the built-in camera option

Example 1. Person



Example 2. Car



Ordering Information

Please send us any questions or requests by email(info@keycom.co.jp)or telephone(+81-3-5950-3101).
Our seles representative will answer to your questions and will propose an optimal system to yor.
