Standard Radar Targets (Sphere or Triangular Trihedral)

Model No. RES02
Spherical type - our past records : maximum diameter 1120mm !!

【Related Contents】
πŸ‘‰ High quality Wave Absorption Sheet/Panel
πŸ‘‰ Products Line-up of RCS measurement system
πŸ‘‰For developing Radar(Microwave, Millimeter wave) in general : Please check here
πŸ‘‰For developing Automotive Radar : Please check here

Specifications and Parts No.

Spherical type

  Nominal radar cross sectionγ€€( RCS )
Parts No. Diameterγ€€(mm) Minimum use frequencyγ€€(GHz) γ€€γ€€γ€€(㎑) γ€€γ€€(dBsm) Installation bolt Weightγ€€(g)
γ€€KRTS-138 γ€€γ€€γ€€138 γ€€γ€€γ€€γ€€γ€€γ€€4.3 γ€€γ€€γ€€0.0150 γ€€γ€€γ€€-18.3 γ€€1/4-20 UNC γ€€γ€€200
γ€€KRTS-254 γ€€γ€€γ€€254 γ€€γ€€γ€€γ€€γ€€γ€€2.4 γ€€γ€€γ€€0.0507 γ€€γ€€γ€€-12.95 γ€€3/8-16 UNC γ€€γ€€660

Triangular trihedral type (corner reflector)

γ€€a (mm)
γ€€ ( Edge length )
γ€€γ€€γ€€24GHz γ€€γ€€60GHz γ€€γ€€76.5GHz γ€€γ€€79GHz
γ€€(㎑) γ€€(dBsm) γ€€(㎑) γ€€(dBsm) γ€€(㎑) γ€€(dBsm) γ€€(㎑) γ€€(dBsm)
γ€€γ€€γ€€γ€€20 γ€€0.00429 γ€€-23.67 γ€€0.0268 γ€€-15.72 γ€€0.0436 γ€€-13.61 γ€€0.0465 γ€€-13.33
γ€€γ€€γ€€γ€€30 γ€€0.0217 γ€€-16.63 γ€€0.1357 γ€€-8.674 γ€€0.221 γ€€-6.564 γ€€0.235 γ€€-6.284
γ€€γ€€γ€€γ€€50 γ€€0.168 γ€€-7.759 γ€€1.047 γ€€0.2000 γ€€1.702 γ€€2.310 γ€€1.815 γ€€2.590
γ€€γ€€γ€€γ€€100 γ€€2.681 γ€€4.282 γ€€16.75 γ€€12.24 γ€€27.24 γ€€14.35 γ€€29.05 γ€€14.63
γ€€γ€€γ€€γ€€150 γ€€13.57 γ€€11.33 γ€€84.82 γ€€19.28 γ€€137.90 γ€€21.40 γ€€147.04 γ€€21.67
γ€€γ€€γ€€γ€€200 γ€€42.89 γ€€16.32 γ€€268.07 γ€€24.28 γ€€435.8 γ€€26.39 γ€€464.73 γ€€26.67

Ordering Information (Please let us know your testing needs, even if rough idea.)

Spherical Type

Spherical Type Diameter of sphere (mm) or nominal radar cross section (㎑ or dBsm)
KRTC- ( )

Triangular trihedral Type (Corner Reflector)

Triangular trihedral Type Assigned frequency (GHz) Diameter of sphere (mm) or nominal radar cross section (㎑ or dBsm) For testing: T
For evaluation : E
P (when you need lazer pointer)
KRTC- ( ) ( ) ( ) ( )

Triangular trihedral Type length of edge (mm) For testing: T
For evaluation : E
P (when you need lazer pointer)
KRTC- ( ) ( ) ( )


β€» Please let us know when you have a request for pylon.
β€» Numbering example : Corner reflector for testing, 60GHz, RCS0.2dBsm (with lazer pointer) -> KRTC-60-0.2-T-P




Configurations

Spherical type

No directivity, easy to handle

Product Image

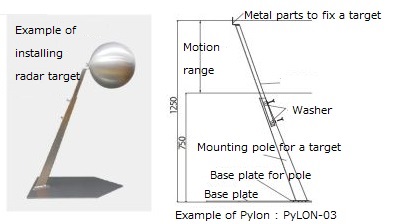

Installation Example

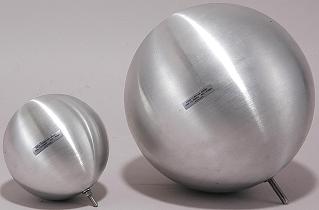

γ€€Left : Diameter φ138mmγ€€γ€€ Right : Diameter φ254mmγ€€

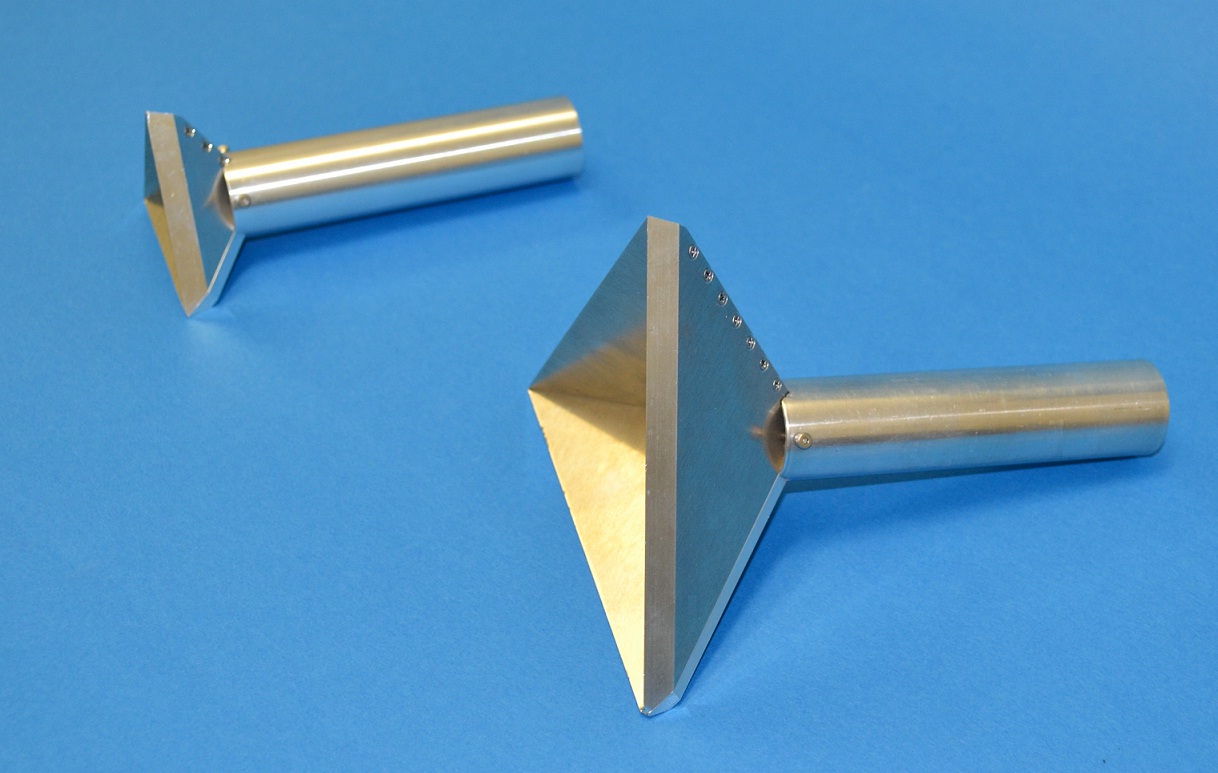

Triangular trihedral type (Corner Reflector)

Wide directivity.
Laser pointer included (option)

For testing

For evaluation

Left : Edge length 220mmγ€€Right : Edge length 87mm
