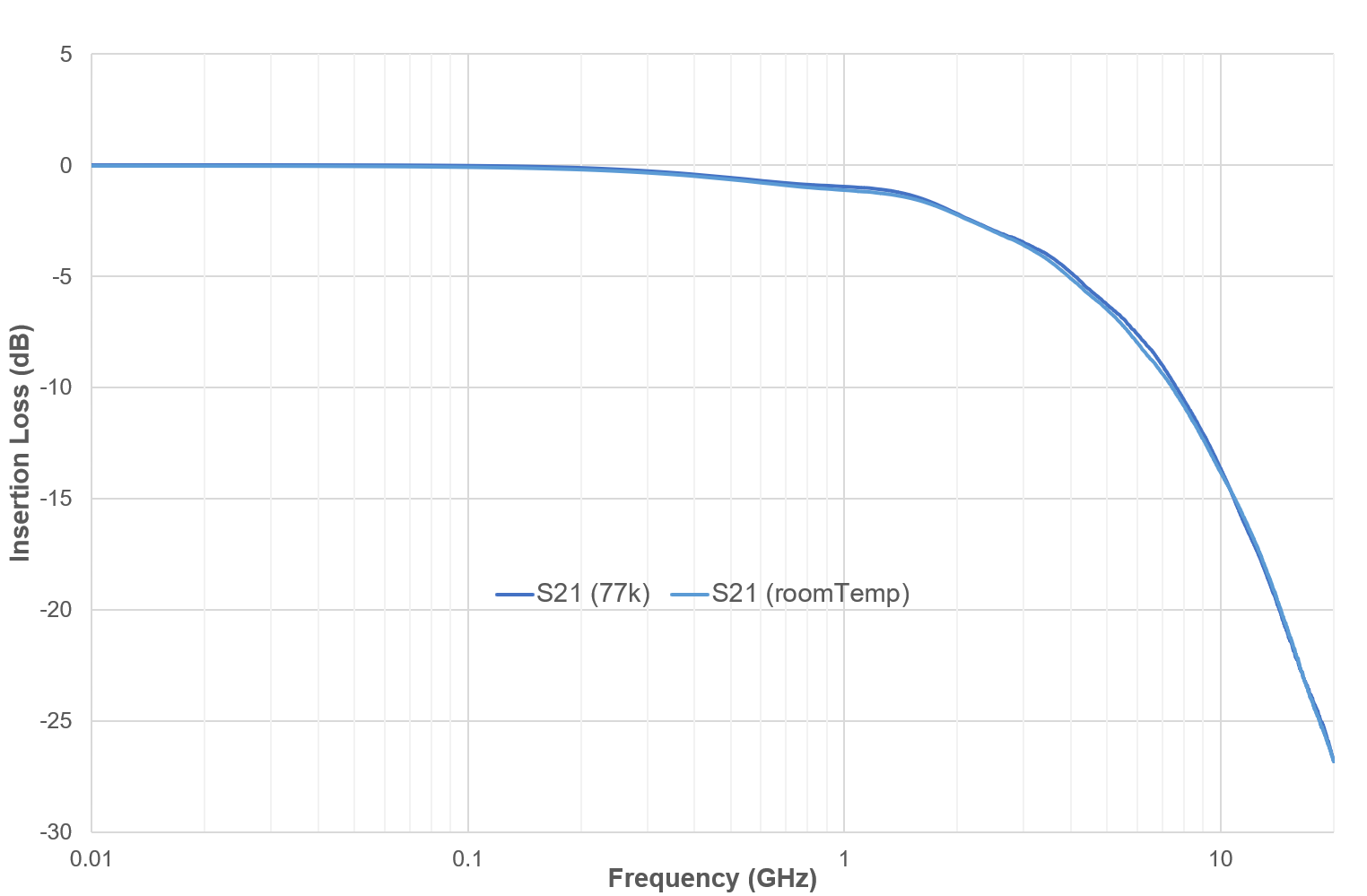

Measurement Data of Insertion Loss
S21
 |

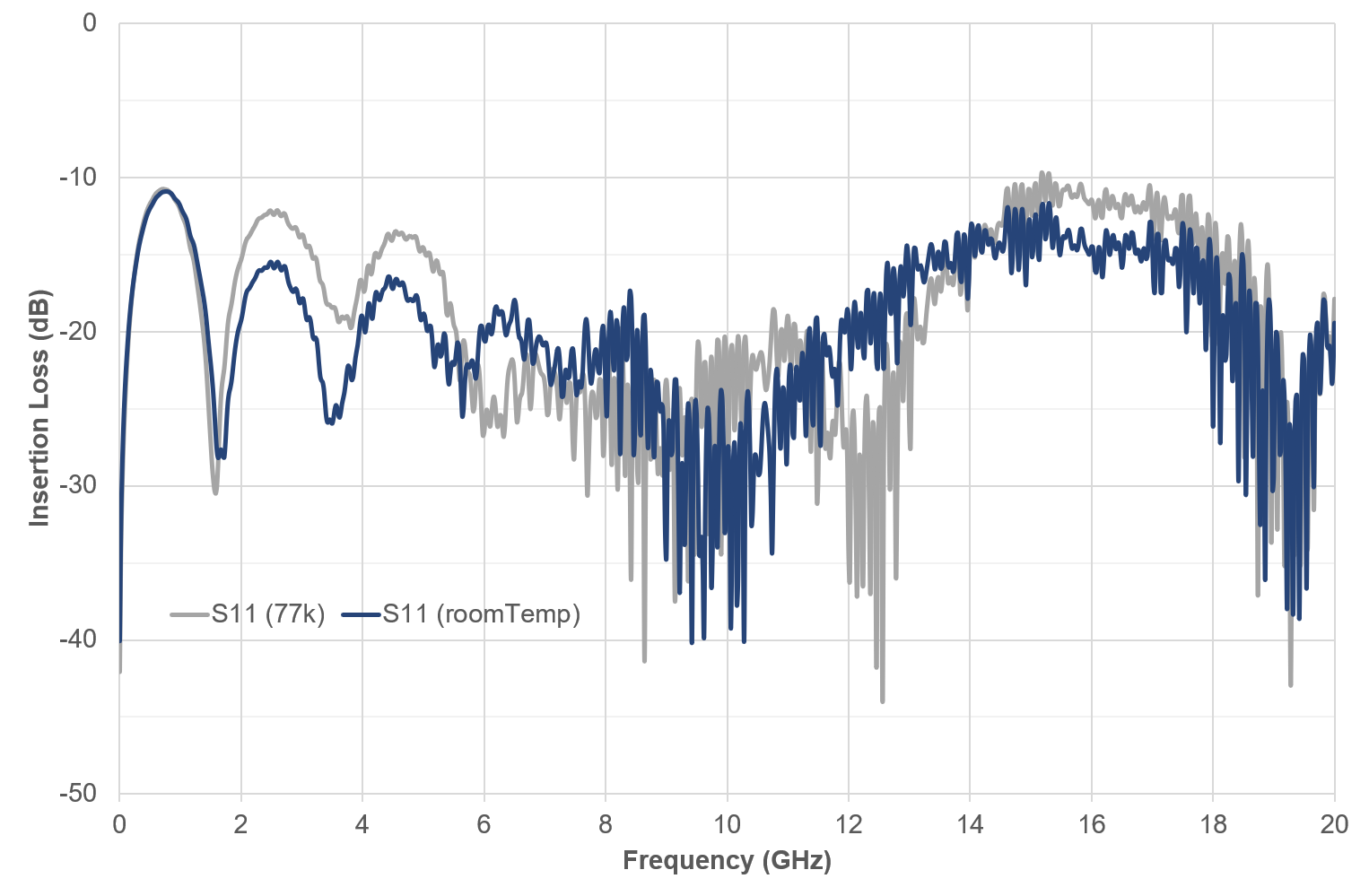

S11
 |
Ordering Information
| Part No. | Connector | Attenuation frequency |
|---|---|---|
| CPLPF-200-2 | SMA | above 2GHz |

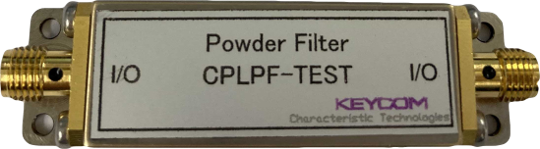

Powder Filter for Coaxial Cables
Model No. UPJ21-02
A copper powder filter that reduces high-frequency noise for cryogenic experiments.
- Insertion Loss than 3dB @ 2 GHz (typical)
- Return Loss 10dB (typical)
- Impedance 50ohm
- Capable of operation at 10mK
