Bias-TEE 9GHz type
for room temperature
(DC port 1kHz pulse signal compatible)

Model No. BYT01 : KDC-H1400M9G-01

The characteristics of S21 from RF port to RF&DC port are flat over a wide bandwidth.
This is the first product of wideband Bias Tee, to achieve 3000mA input current at the DC port.
It is possible to use the DC port to input pulse signals instead of DC, depending on the frequency.
Lead time is also shorter than before.
Please feel free to contact us for individual details and customization.

【Related Products】
👉 Products Line-up of Bias-Tees
👉 Products Line-up of Bias-TEE For Large Current

Specifications

Items	Details
Part No.	KDC-H1400M9G-01
Characteristic impedance [Ω]	50
Minimum frequency (-3dB)[Hz]	1400M
Maximum frequency[Hz]	9G
DC electric strength (max) [V]	25
DC Maximum supply current [mA]	3000
Amount of reflection attenuation (max) [dB]	-10dB
Connector	SMA(f),(f)
Size[mm] （connector area not included）	20(W) x 33.4(L) x 11.5(H)

S-paramater Measurement Result

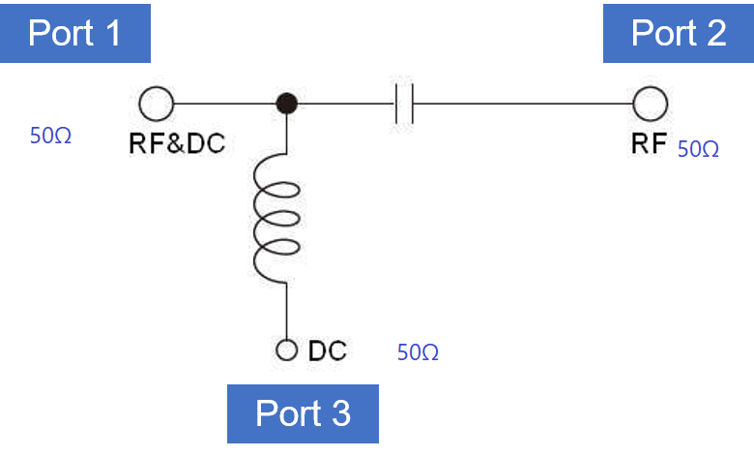

Measurement Condition

A Terminator is installed on Port 3, and BiasTee is placed in a 77K environment, and S-parameter data is extracted when the data is stable.
There is a slight difference in the data around 20 GHz depending on the measurement date, due to the state of Calibration, and the accuracy of the measurement data around 20 GHz varies.

Measurement Result

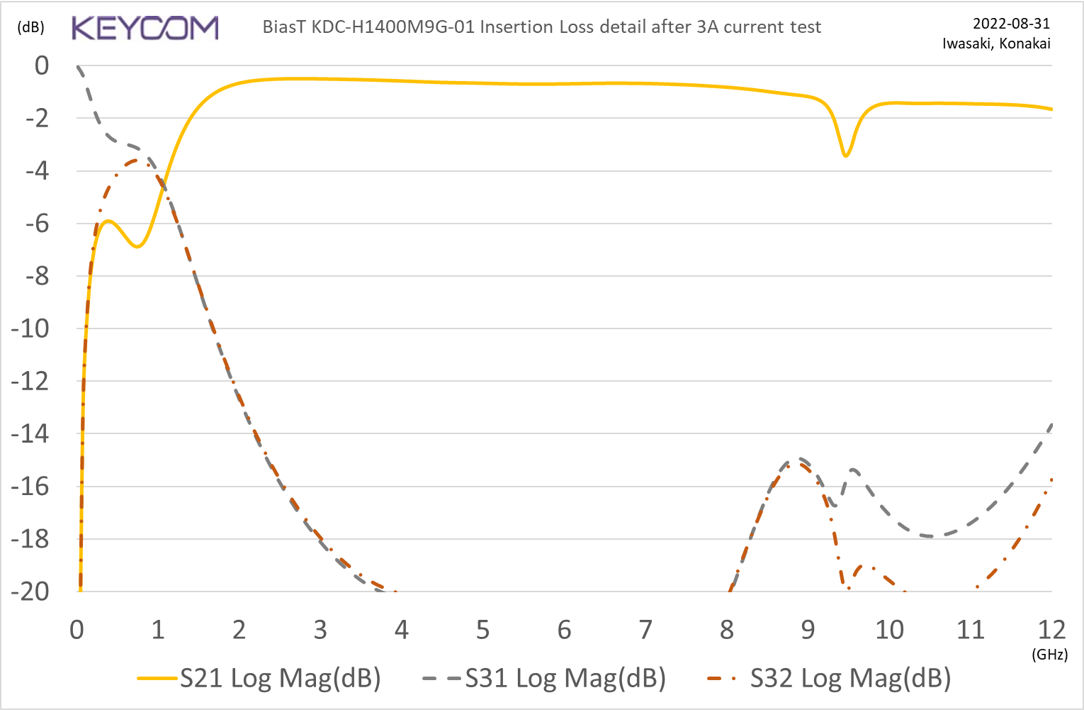

Insertion Loss

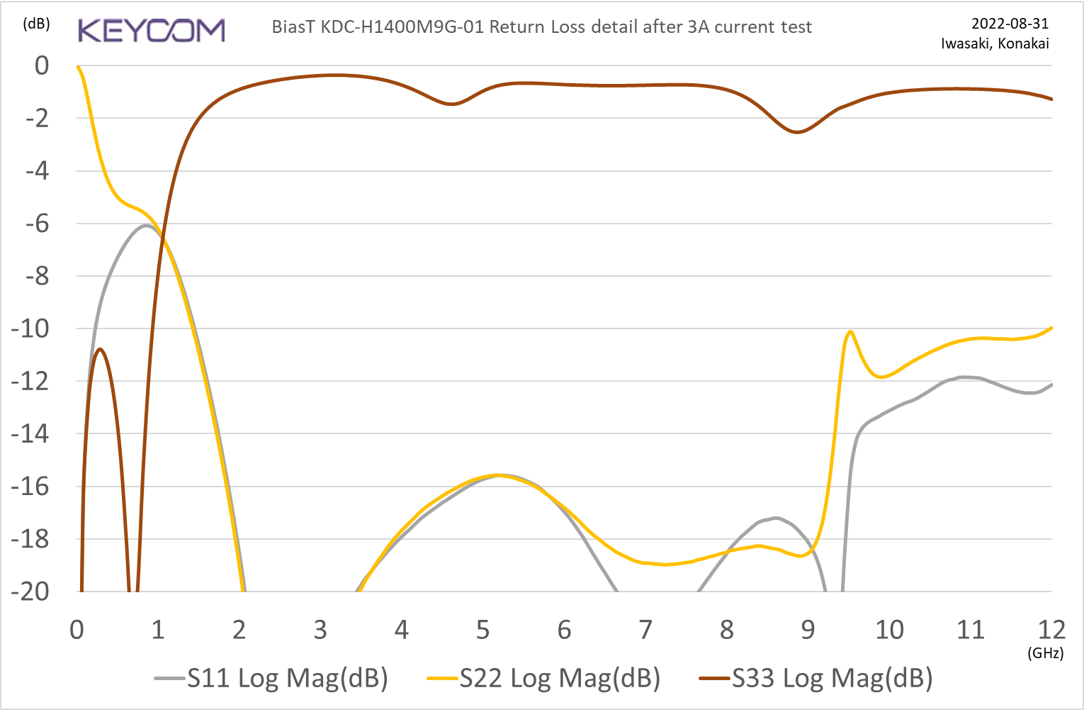

Reflection Loss

Measurement Condition

RF & DC Port Pulse Measurement Result

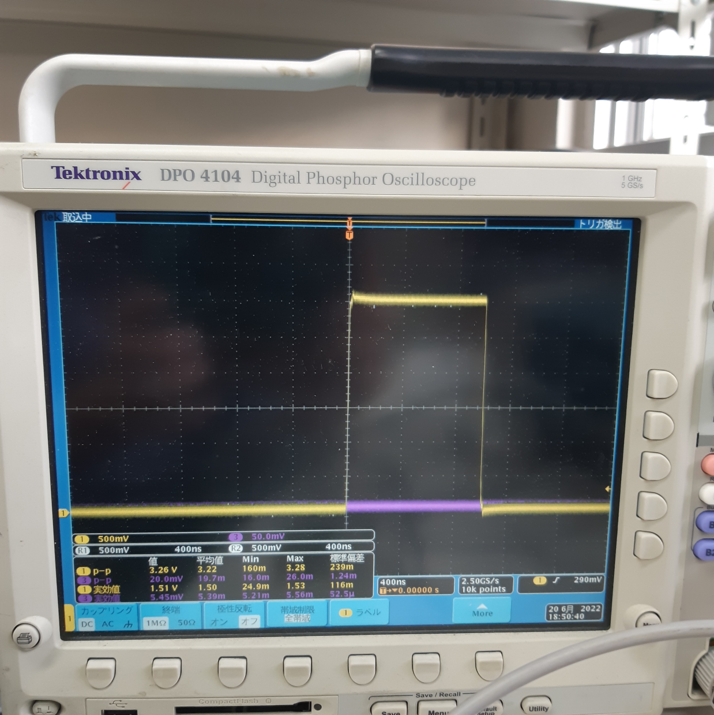

Measuremet Result

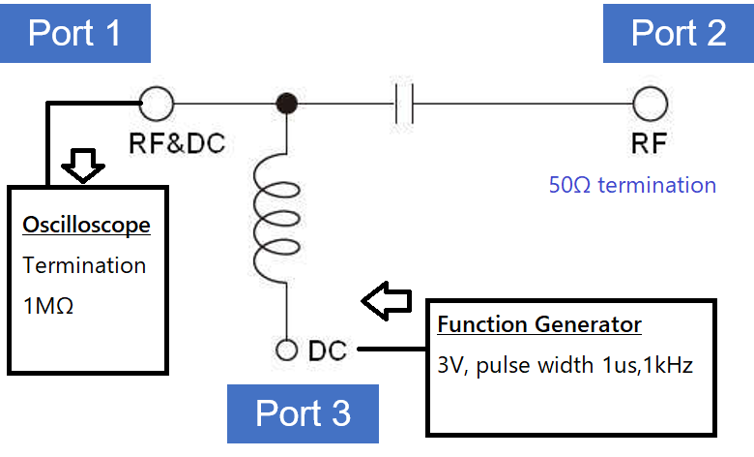

Measurement Condition

RF Port Pulse Measurement Result

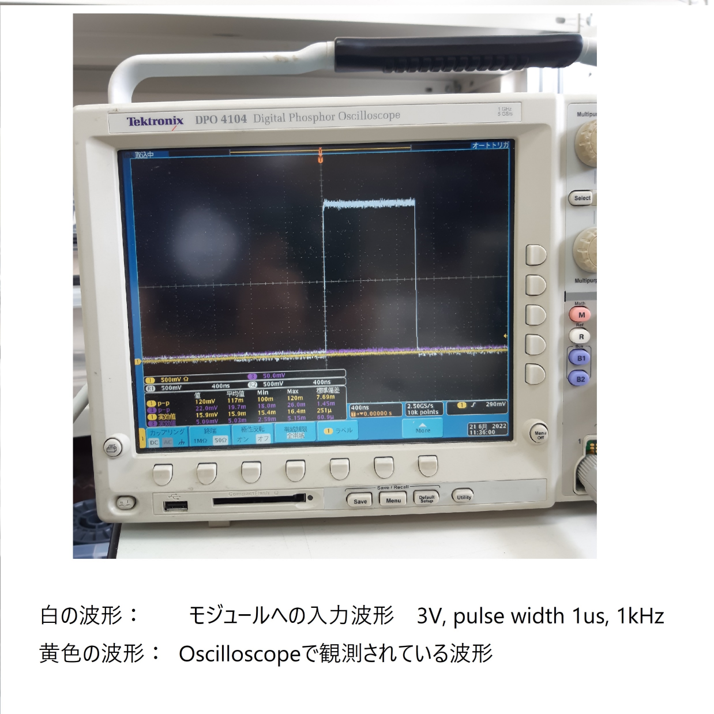

Measurement Result

* White waveform: Input waveform to the module

* Yellow waveform: Waveform observed by oscilloscope

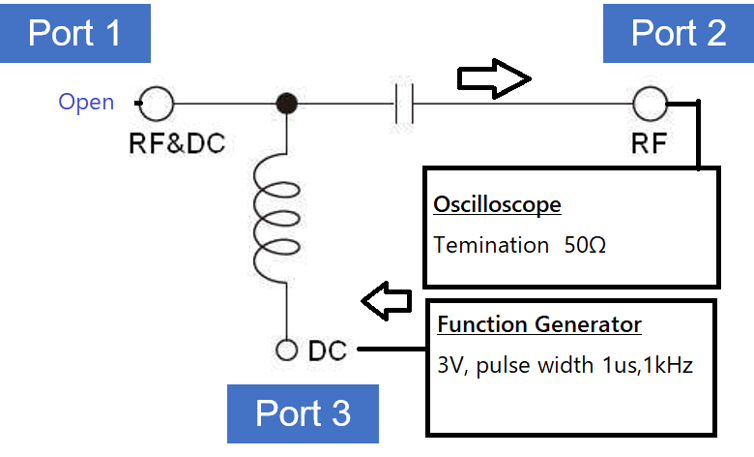

Measurement Condition
