LiDAR Test System
Moving Target Type

Model No. LTS03
Feature

Moving target type has been newly added to KEYCOM's LTS(LiDAR Test System) series.

This type enables more realistic testing by varying the relative distance (1.5m to 300m*).

The system is very compact, so that it can be used on a desk in a room for smooth verification of LiDAR functions.

*The shortest distance depends on the cable length L0 and the space distance L1.

【Related Products】
・Introduction of KEYCOM's Radar Target Simulator(Radar Test System)・・・Please check here
・Radar Target simulator--Moving Target Type・・・Please check here

Configurations


Use Case

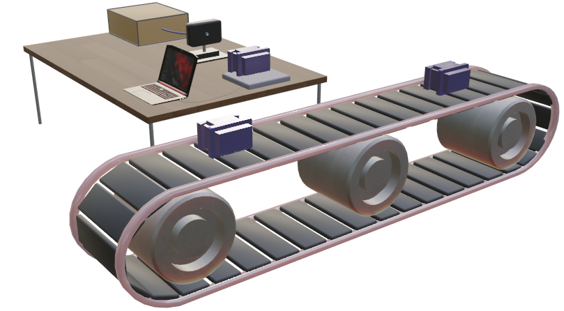

Production Line

Functional testing of LiDAR assembled on the conveyor belt production line can be performed.

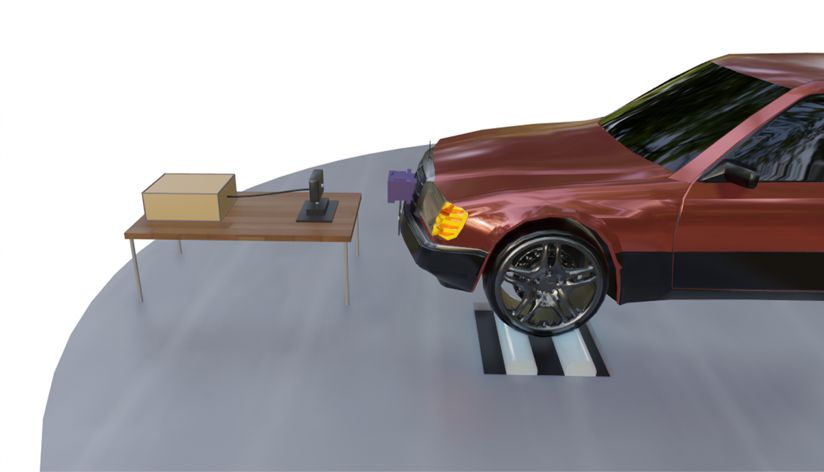

Indoor Real Car Testing

This will be the most practical indoor test.
With LiDAR installed in a real vehicle, functional testing of LiDAR can be performed while making targets appear in a given scenario. The LiDAR can be mounted on a real vehicle and tested in a given scenario with targets appearing.


Spcifications

Items Details
LiDAR method ToF(Time of Flight), FMCW
Wavelength 905nm, 1550nm(Collimator lens replacement required)
Distance 1.5m~300m
* The shortest distance depends on the cable length L0 and the space distance L1.
Distance step 0.25m
Distance attenuation Calculation condition is 1/R2, simulate the attenuation of reflected light due to diffusion caused by the distance of an object.
* When the distance attenuation function is turned on and the distance becomes 30m or more.
Reflectance Variable(0 ~ -10dB),simulate the ratio of reflected light intensity with respect to the 1/R diffusion of the object.
* When the distance attenuation function is turned on and the distance becomes 30m or more.
Reflectance step 1dB
Moving Target function equipped
Control I/F CAN
Size L:450mm, W:430mm, H177mm
Power 85 ~ 240 V AC , 50 ~ 60Hz
