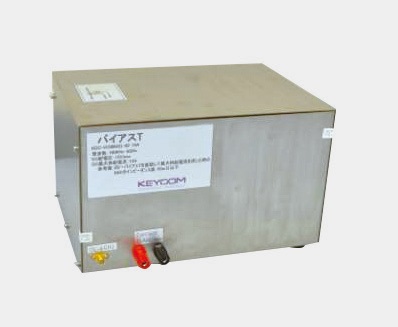

Bias-TEE For Large Current [15A]

Model No. BYT05 : KDC-H100K6G-15A

Bias Tee for large current,with maximum supply DC current of 15A.

Specifications

Model No.	BYT05（15A）
Parts No.	KDC-H100K6G-15A
RF Frequency	100kHz-6GHz
RF Insertion Loss	5dB
RF Maximum input/output power	30dBm
RF Return Loss(min)	8dB
DC Withstand Voltage	20V
DC Maximum Supply Current	15A
Connector: RF I/O side	SMA(f)
Connector: RF+DC I/O side	N(f)
Connector : Power supply DC	Banana Jack : Red VDD/ Black GND
Size	100(W)x250(D)x150(H)mm
Warm-up time	30 min（Recommended）

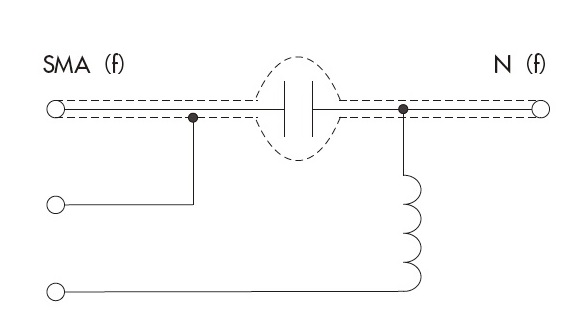

Configuration

Case of single bias-tee

Case of connecting two identical bias-tees

If you use a VNA, you have to conduct calibrations of Open, Short and Load instead of DUT. Then, after two Bias-tees are directly connected, S11 and S21 are as follows:

S11: ‒30 dB or less (100 kHz to 6 GHz / 15 A, 100 kHz to 1 GHz / 30 A)
S21: 1 dB or less (100 kHz to 6 GHz / 15 A, 100 kHz to 1 GHz / 30 A)

Damage prevention measures when network analyzer is connected;
Insulation between RF input and RF output should be surely confirmed before the maximum DC power supply current flows.

Ordering information

Please inform us of Part number or your requirement if any.
