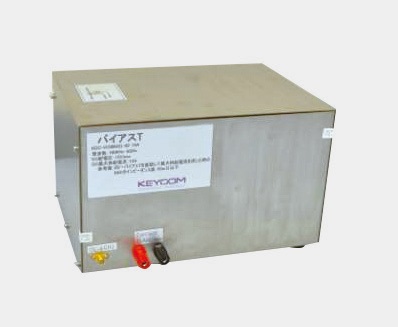

Bias-TEE For Large Current [35A]

Model No. BYT05 : KDC-H100K1G-35A

Bias Tee for large current,with maximum supply DC current of 35A

Specifications

Model No.	BYT05（35A）
Parts No.	KDC-H100K1G-35A
RF Frequency	100kHz-1GHz
RF Insertion Loss	2dB
RF Maximum input/output power	30dBm
RF Return Loss(min)	15dB
DC Withstand Voltage	10V
DC Maximum Supply Current	35A
Connector: RF I/O side	SMA(f)
Connector: RF+DC I/O side	N(f)
Connector : Power supply DC	Banana Jack : Red VDD/ Black GND
Size	100(W)x250(D)x150(H)mm
Warm-up time	30 min（Recommended）

Configuration

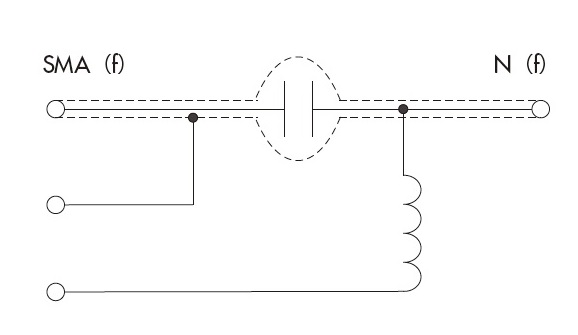

Case of single bias-tee

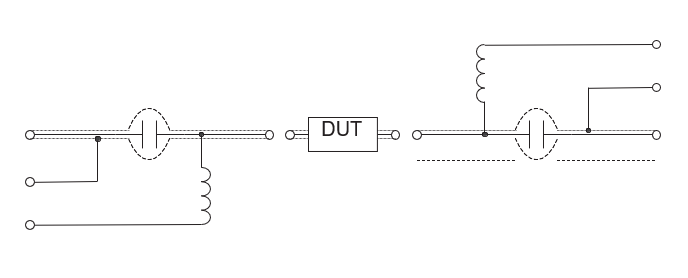

Case of connecting two identical bias-tees

When using a vector network analyzer, conduct calibrations of Open, Short and Load instead of DUT. Then, when two bias - tees are directly connected, S11 and S21 are as follows:

S11: ‒30 dB or less (100 kHz to 6 GHz / 15 A, 100 kHz to 1 GHz / 30 A)
S21: 1 dB or less (100 kHz to 6 GHz / 15 A, 100 kHz to 1 GHz / 30 A)

Damage avoidance in the case of connecting to a network analyzer. Insulation between RF input and RF output should be surely confirmed before the maximum DC power supply current flows.

Ordering information

Please inform us of Part number or your requirement if any.
