Cross-Road Target Simulator

Model No. SRS-02

KEYCOM's Automotive Radar Test System(RTS,Radar Target Simulator) allows you to test not only Front Radar, but also Side-view radars in action, simulating complex situations.

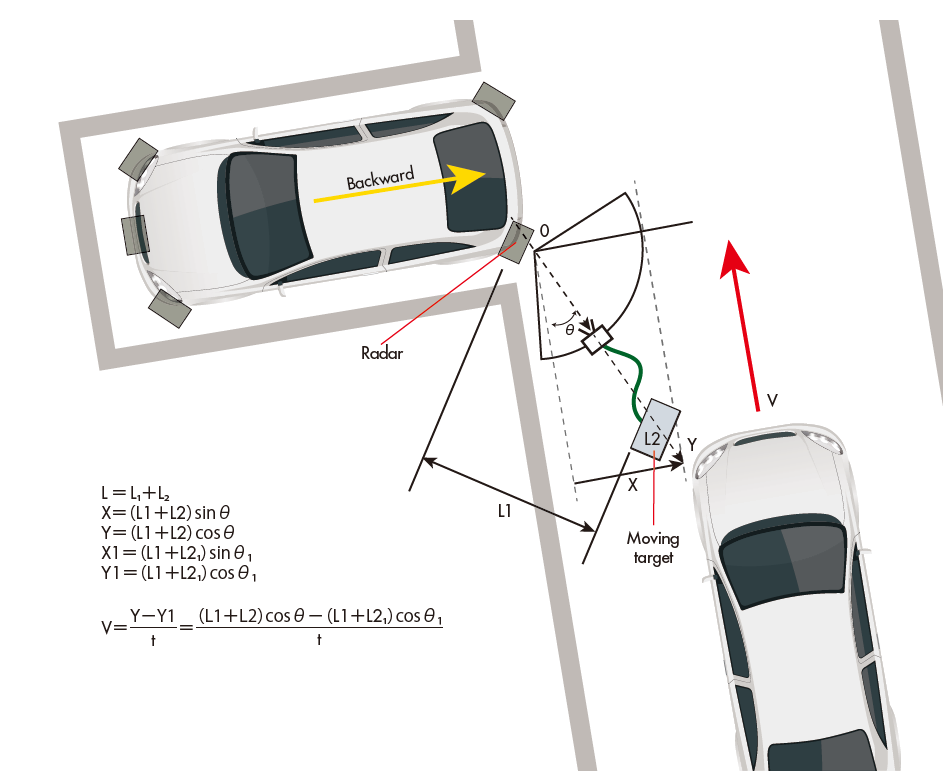

For example, in an indoor test, the system reproduces the diagonal distance and speed of a target such as a car crossing behind the Host Vehicle when it goes out of a garage.

NOTE: This is one of the application cases of our RTS.
To understand features of RTS series, please check the following contents.

【Related Contents】

👉 Introduction of KEYCOM's RTS series
  You can grasp the whole picture of our RTS series by checking here.
👉1. For Moving Target Simulation
  The distance and Doppler speed can be changed as desired to simulate situations where the target is approaching or moving away.
👉2. For Lane Change simulation
  With this moving antenna system(additional to 1.), you can reproduce horizontal movement of generated targets, to simulate lane changing action of remote vehicles running in front or back.

Configuration


Specifications

The system isn't super heave weight, You can move and set up by yourself.

Items
Details
Target 1 target (Expansion: 3 targets are possible)
Angular resolution 0.2 degree
Opening angle 80 degrees left and right from the center
Minimum movement time 160 degrees for 1 second
Distance resolution 0.1m
Explicit minimum distance L1 + L2 = 1.2m + 2m = 3.2m
*L2: shortest distance within the moving target
Interface CAN (communication speed within 10 msec)
